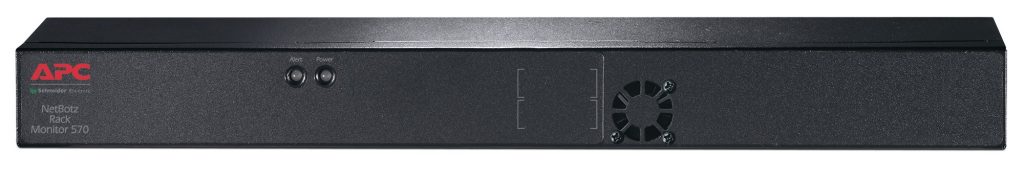

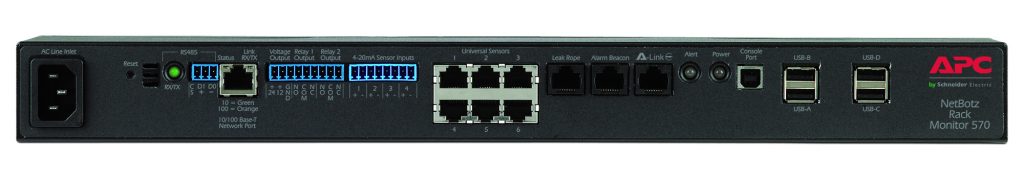

NetBotz Rack Monitor 570

Supports up to 4 external camera pods, 12 sensor pods and up to 78 Universal Sensors.
Includes: Country-specific detachable power cord, Documentation CD, Installation guide, Rack Mounting brackets, Temperature/Humidity Sensor, USB cable

SKU: NBRK0570 Kategori: NetBotz 500, Security and Environmental Appliances, SECURITY AND ENVIRONMENTAL MONITORING

Product Overview
Technical Specifications

NBRK0570 Features

NetBotz Rack Monitor 570

Supports up to 4 external camera pods, 12 sensor pods and up to 78 Universal Sensors.

Includes: Country-specific detachable power cord, Documentation CD, Installation guide, Rack Mounting brackets, Temperature/Humidity Sensor, USB cable

Customizable Input Contacts
Monitor conditions from external devices.
Customizable Output Relays
Control output from external devices via output relay(s).

NetBotz 500 Features & Benefits

Advanced View client application

Robust appliance interface provides historic alerts, graphs, and configuration.

Alerts View

Easily review and correlate alerts. Provide context to alerts by attaching video clips, graphs, and maps.

Enterprise management system compatible

Make device information available to your preferred enterprise management system by forwarding SNMP traps (events) across SNMPv1 and SNMPv3 using the PowerNet MIB

Integrates with StruxureWare Data Center Expert

An IT-ready, scalable access monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network

Customized escalation policies

Alerts are managed according to your escalation policies and received in multiple formats.

Adjustable threshold

Customize threshold definitions (multiple thresholds per sensor, scheduling, severity levels) to your requirements.

Environmental monitoring

Prevent equipment failure from a full range of threatening environmental conditions.

Surveillance

Detect and record motion, allowing a visual record to be paired with an access or environmental alert, which speeds root cause analysis.

Faultnotification

Real-time event notification minimizes response times to critical physical infrastructure situations. Enables IT Administrators to reduce mean time to repair, improve efficiency, and maximize uptime.

Access monitoring

Detect access by unauthorized personnel via door switch.

Event-driven video storage

Video storage prompted by motion or alert.

Browser Accessible

View the user interface with a browser. Provides quick access from anywhere on a secure network.

Number of Power Cords

Input Power

51.0Watts

Maximum Height

1.71inches (43mm, 4.3CM)

Maximum Width

17.0inches (432mm, 43.2CM)

Maximum Depth

3.66inches (93mm, 9.3CM)

Rack Height

Net Weight

3.83lbs. (1.74KG)

Shipping weight

6.29lbs. (2.86KG)

Shipping Height

4.5inches (114mm, 11.4CM)

Shipping Width

21.5inches (546mm, 54.6CM)

Shipping Depth

9.0inches (229mm, 22.9CM)

Operating Temperature

32 - 113 °F (0 - 45 °C)

Operating Relative Humidity

0 - 95 %

Operating Elevation

0-10000ft (0-3000meters)

Storage Temperature

-15 - 65 °C

Storage Relative Humidity

0 - 95 %

Storage Elevation

0-50000ft (0-15000meters)

Approvals

AS/NZS 3548 (C-Tick) Class A, cUL Listed, CE, FCC Part 15 Class A, GOST, ICES-003, IRAM, Low Voltage Directive 2006/95/EC, NOM, UL Listed, VCCI Class A, VDE

Standard warranty

2 years repair or replace

RoHS

Compliant

REACH

REACH: Contains No SVHCs

Battery Directive

Compliant

Camera Frame Rate

Up to 30fps

Type of Camera Pods Supported

4 - 20mA Sensor, Camera Pod 120, CCTV Adapter Pod 120, Rack Sensor Pod 150, Room Sensor Pod 155, Sensor Pod 120

Camera Resolution

Up to 1280x1024

Type of External Sensors Supported

0-5V, Door Contact, Dry Contact, Humidity, Smoke, Fluid Spot Leak, Temperature, Vibration

Number of Additional Camera Pods

6.0

Number of Additional Sensor Pods

72.0

External Sensor Ports

4 Networked, 4 USB

Video Source Input Signals

Analog CCTV cameras via USB CCTV Adapter Pod, NetBotz USB Camera Pod, NTSC, PAL, Pelco IP110-CHV9, Pelco IP3701H-2, Pelco IPSD4N-W0
