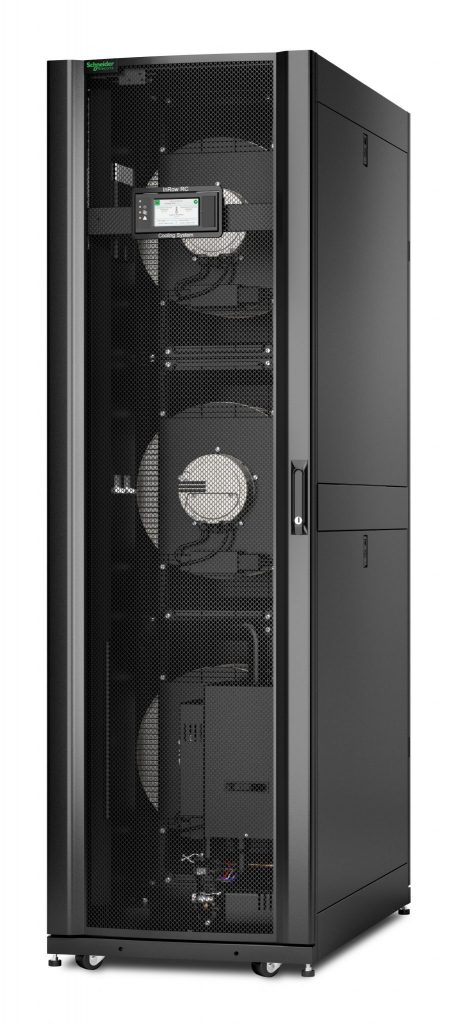

InRow RC, 600mm, Chilled Water 460-480V 60Hz, w/ humidifier | ACRC601P
-
Close-coupled, chilled water cooling for medium to large data centers
-
Includes: Installation Guide, Operations and Maintenance Manual
InRow RC, 600mm, Chilled Water 460-480V 60Hz, w/ humidifier | ACRC601P
ACRC601P Features
Cooling Distribution Unit 12 Circuit, Bottom/Top Mains, Bottom Distribution Piping
Heat removal solutions designed to meet the diverse requirements of the data center and surrounding environment.
Includes: Installation guide
Provides a central point for fluid balancing.
- Electric Reheat
Prevents overcooling during dehumidification.
- Humidifier
Humidity is managed through a self-contained steam canister humidifier for maximum efficiency and ease of maintenance. The pure steam canister maintains consistent capacity output, and requires very little or no scheduled maintenance.
InRow Chilled Water Cooling Features & Benefits
Manageability
Real-Time Capacity Monitoring
Real-time display of current and available cooling.
Microprocessor controller
Provides proactive control and real-time monitoring via a four line, eighty character, alphanumeric display.
Building management system integration
Send alarms and data points allowing you to manage critical building infrastructure from a single system.
Serviceability
Easy service access
Allows for all serviceable components to be replaced/maintained by easily accessible panels/doors.
Agility
Casters
Provides flexibility to move the unit to wherever cooling is required.
Scaleable densities
Allows for higher densities to be achieved by integrating containment with room, row and rack cooling system architectures.
Modular design
Modular design provides scalable solutions to add cooling as demand increases.
Total Cost of Ownership
Row-based architecture
Captures hot exhaust air directly from the IT equipment, thereby increasing the unit's sensible cooling capacity over traditional cooling architectures.
Variable speed fans
Variable speed fans reduce energy consumption during off-peak cooling periods.
Availability
Rack inlet control
Rack inlet control guarantees inlet temperature to IT equipment.
Dual A-B power inputs
Draws power from the UPS for power protection with dual feeds for redundancy.
Predictable cooling
Placing the unit in the row of racks moves the source of cooling closer to the heat load. This eliminates air mixing and provides a predictable cooling architecture.
Active response controls
Monitors and actively adjusts cooling capacity to ensure proper server inlet temperatures. Through the microprocessor controller, visibility into the operation and health of the unit is provided.
Top and bottom chilled water connections
Allows chilled water to be connected from the top, if routing from overhead, or bottom, if on a raised floor.
Input
Nominal Input Voltage
480V 3PH
Input frequency
60 Hz +/- 3 Hz
Input Connections
Hard Wire 4-wire (3PH + G)
Number of Power Cords
2
Communications & Management
Control panel
Multi-function LCD status and control console
Audible Alarm
Audible and visible alarms prioritized by severity
Physical
Maximum Height
78.39inches (1991mm, 199.1CM)
Maximum Width
23.62inches (600mm, 60.0CM)
Maximum Depth
42.13inches (1070mm, 107.0CM)
Rack Height
42U
Net Weight
776.0lbs. (352.73KG)
Shipping weight
1019.0lbs. (463.18KG)
Shipping Height
85.29inches (2166mm, 216.6CM)
Shipping Width
33.47inches (850mm, 85.0CM)
Shipping Depth
44.75inches (1137mm, 113.7CM)
Color
Black
Units per Pallet
1.0
Conformance
Approvals
cUL Listed, FCC Part 15 Class A, Industry Canada, UL Listed
Standard warranty
1 year (parts only), 1 year on-site repair or replace with factory authorized Start-Up
Sustainable Offer Status
Proposition 65 Warning
Available in Documentation tab
General
Air Discharge Patterns
Horizontal
Air Flow
6000.0CFM (2831.68lps)
Condensate Pump Capacity
8.45gal/hour (0.008lps)
Humidification Value
6.6pounds/hour
Intake Air
Rear Return
Minimum Water Inlet Temperature
45.0 °F (7.0 °C)
