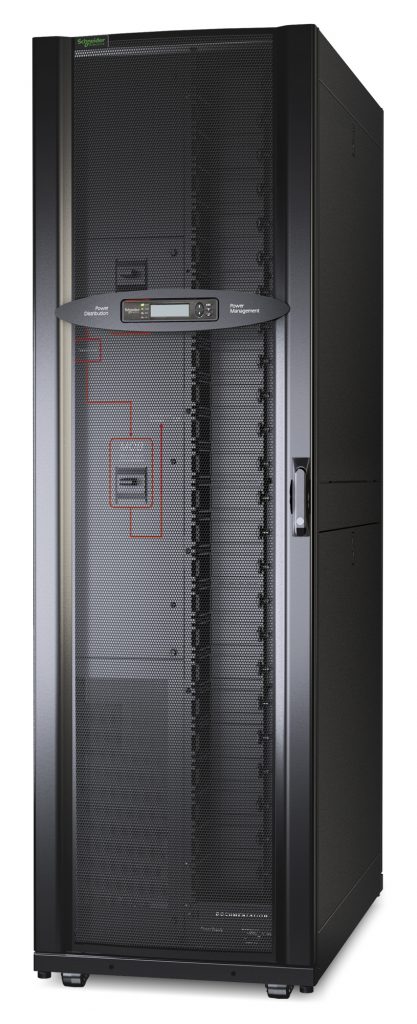

APC 144kVA Modular Power Distribution Unit, Isolation Transformer, 480:208V, 72 Poles, 2 Subfeed

A fully scalable power distribution system that cost-effectively provides high levels of availability and enables the quick addition of circuits and cord-sets.
Includes: Installation guide, Network Management Card

Product Overview
Technical Specifications

PDPM150G6F Features

APC 144kVA Modular Power Distribution Unit, Isolation Transformer, 480:208V, 72 Poles, 2 Subfeed

A fully scalable power distribution system that cost-effectively provides high levels of availability and enables the quick addition of circuits and cord-sets.

Includes: Installation guide, Network Management Card

Built-in Web/SNMP management
Full-featured management via a Web browser as well as comprehensive management from a Network Management System.
Current Monitoring
Monitors the aggregate current draw per power distribution unit.
Local and web-based monitoring
Status available to customers both in the data center and remotely
Multiple distribution options
Superior design flexibility enables a wide range of customer requirements to be addressed.
Network management capability
Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet.
Smallest footprint
Minimizes your real estate expenses
StruxureWare Data Center Expert compatible
Enables centralized management via StruxureWare Data Center Expert.
System mobility
Power distribution units can easily be relocated to accommodate a changing data center environment.

Modular Power Distribution Features & Benefits

Multiple distribution options

Superior design flexibility enables a wide range of customer requirements to be addressed.

Safety

Enhance user safety with isolation at all touch points and with positive locking mechanisms that reduce the risk of accidental disconnection

Toolless installation of breakers

Install factory-assembled Power Distribution Modules in under ten minutes - no tools are required

Current Monitoring

Monitors the aggregate current draw per power distribution unit.

Network management capability

Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet.

Modular design

Provides fast serviceability and reduced maintenance requirements via self-diagnosing, field-replaceable modules.

Ease of system expansion

Power Distribution Modules provide an option to expand data center power distribution capability as power demands increase.

Smallest footprint

Minimizes your real estate expenses

System mobility

Power distribution units can easily be relocated to accommodate a changing data center environment.

Nominal Output Voltage

208V 3PH

Overload Protection

Yes

Nominal Input Voltage

480V 3PH

Input frequency

60 Hz

Load Capacity

144000VA

Maximum Line Current

178A

Maximum Height

79.02inches (2007MM, 200.7CM)

Maximum Width

23.62inches (600MM, 60.0CM)

Maximum Depth

42.09inches (1069MM, 106.9CM)

Net Weight

1839.2lbs. (836.0KG)

Shipping weight

1940.4lbs. (882.0KG)

Shipping Height

84.76inches (2153MM, 215.3CM)

Shipping Width

40.0inches (1016MM, 101.6CM)

Shipping Depth

47.99inches (1219MM, 121.9CM)

Color

Black

Operating Temperature

23 - 104 °F (-5 - 40 °C)

Operating Relative Humidity

0 - 95 %

Operating Elevation

0-9842ft (0-2952.6meters)

Storage Temperature

-25 - 65 °C

Storage Relative Humidity

0 - 95 %

Storage Elevation

0-50000ft (0-15000meters)

Approvals

cUL Listed, CSA, OSHPD, UL 60950-1

Standard warranty

1 year repair or replace

Battery Directive

Compliant
